Class：Automotive Connector,FAKRA Connector
Description:

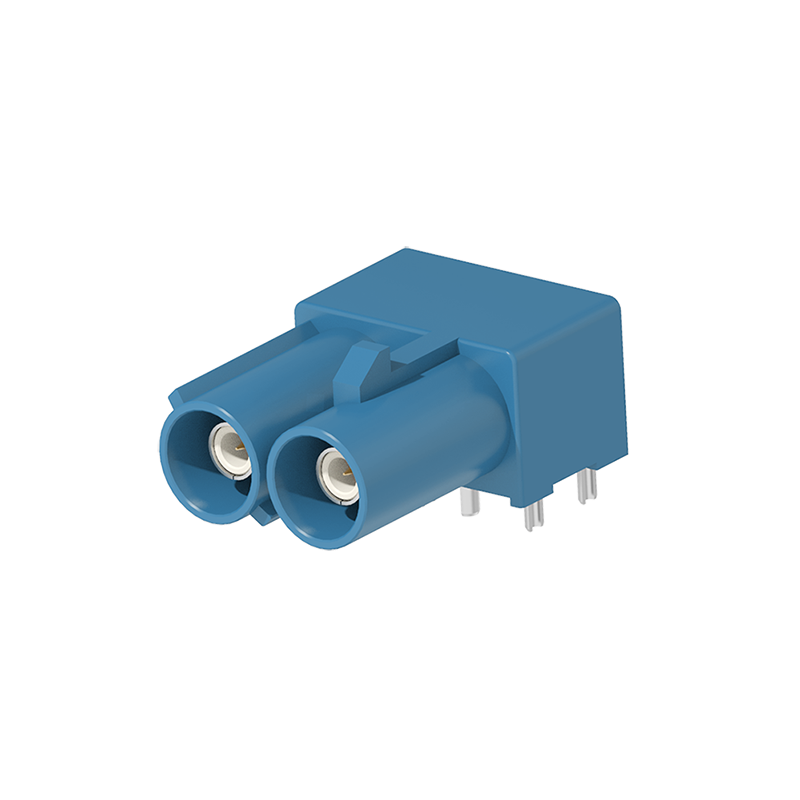

PCB Connector,Dual,Right Angle,Plug
Wire：N/A
Waterproof: No
Coding: A,B,C,N,Z
Application:
Navigation
Autonomous Driving
Infotainment System
360°Full View Monitor System
Advanced Driving Assistance System
Antenna, Blue Tooth
Internet & Mobile Communication
This dual right-angle FAKRA PCB connector is tailored for ADAS, 360° full-view monitors, in-vehicle infotainment and navigation systems, solving space constraints in tight automotive layouts. Boasting 50Ω impedance, DC-6GHz bandwidth, low insertion loss and high insulation resistance (1000MΩ), it ensures 99.9% stable signal transmission. With ≥25 mating cycles, -40℃~+105℃ wide temperature range, USCAR-2 & RoHS compliance, and 5mΩ max contact resistance, it’s durable, anti-interference and trusted by automotive manufacturers for reliable connectivity.
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | Return Loss | Insertion Loss | Insulation Resistance |
| 50Ω | DC-6GHz | 800Vrms | 1A DC Max Depends on wire size | 10mΩ Max | 5mΩ Max | 18 dB Min | ≤0.1×√f(GHz)dB@1GHz | 1000 MΩ Min |
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Engagement Force Waterproof | Engagement Force | Disengagement Force | ||||
| ≥25 cycles | 110 N Min | / | 25 N Max | 2 N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
