4 in 1 Cable Connector(Type R)-China Custom Automotive Connector,Cable Assembly,FAKRA Connector,Factory,Suppliers,Manufacturers-eLinkcar Electronics

Class：Automotive Connector,FAKRA Connector

Description:

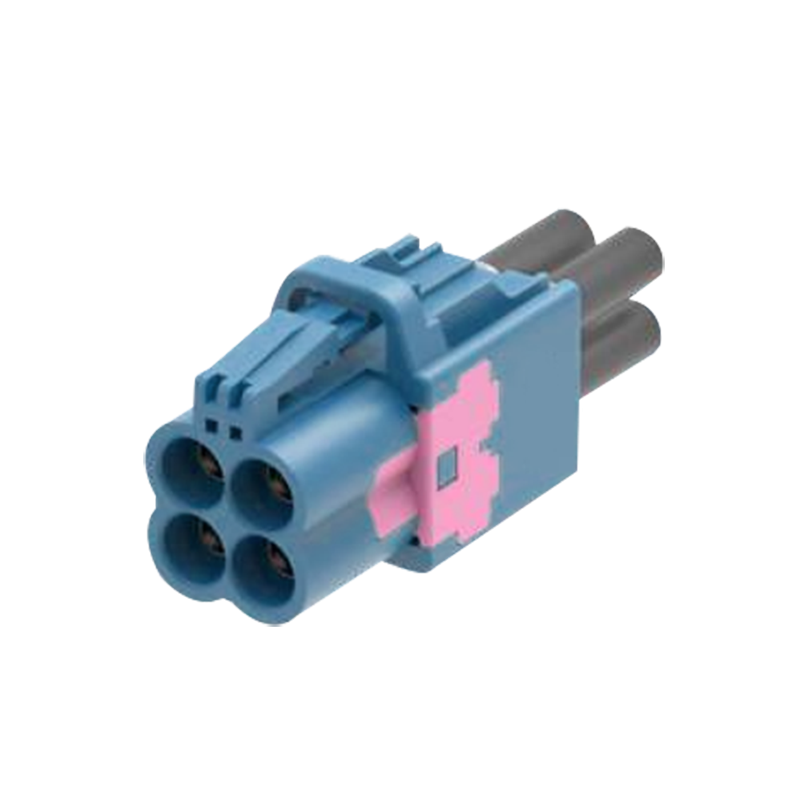

4 in 1 Cable Connector,Straight,Jack

Wire：RG174/RG316/Dacar 302 or equivalent

Waterproof: Yes

Coding: A,B,C,N,Z

Application:

Autonomous Driving

360°Full View Monitor System

Advanced Driving Assistance System

Antenna

Electrical Specifications
Impedance	Frequency	Dielectric Withstanding Voltage	Contact Current	Center Contact Resistance	Outer Contact Resistance	Return Loss	Insertion Loss	Insulation Resistance
50Ω	DC-9GHz	800Vrms	1A DC Max Depends on wire size	15mΩ Max	5mΩ Max	25dB Min	≤0.1×√f(GHz)dB@1GHz	1000 MΩ Min

Mechanical Characteristics
Connector Durability	Retention Force Latch	Engagement Force Waterproof	（4Ports) Engagement Force	（4Ports) Disengagement Force
≥25 cycles	110 N Min	45 N Max	60 N Max	5N Min

Environmental Specifications
Operating Temperature Range	Temperature&Humidity Cycling	Vibration & Mechanical Shock	Thermal Shock	RoHS
-40℃ to +105℃	USCAR-2	USCAR-2	USCAR-2	RoHS Compliance
