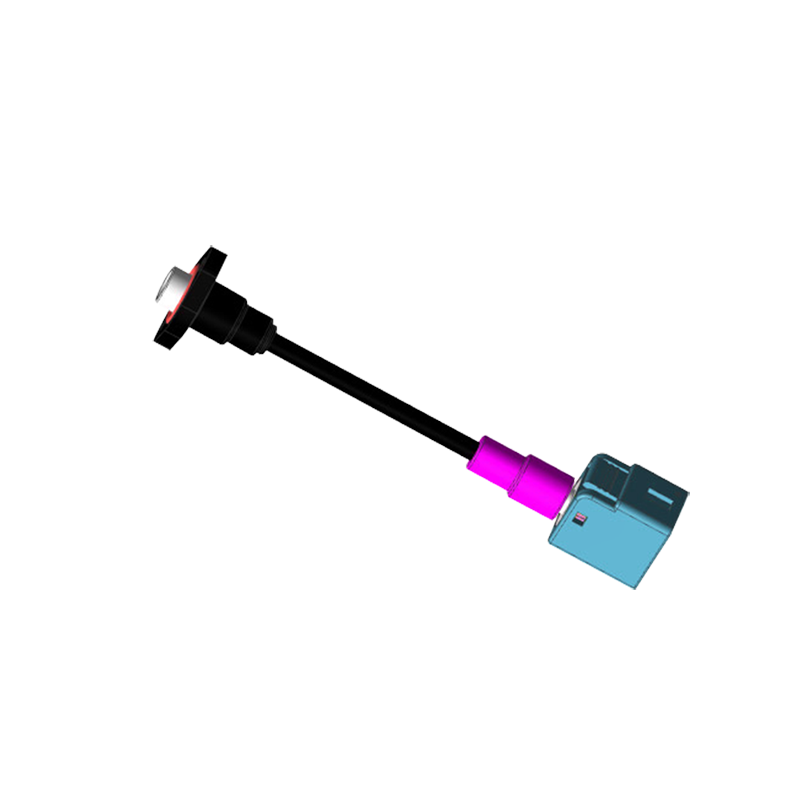

Class：Cable Assemblies
Description:
RG174/RG316/Dacar 302/RG58 or equivalent
Wire：Yes
Waterproof: No
Coding: A,B,C,N,Z
Application:
Autonomous Driving
360°Full View Monitor System
Advanced Driving Assistance System
Multiple Antenna
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | VSWR | Insulation Resistance | |
| 50Ω | DC-3GHz | 500Vrms | 1A DC Max | 5mΩ Max | 5mΩ Max | ≤1.4@2GHz ≤1.5@3GHz | 100 MΩ Min | |
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Coding Efficiency | Engagement Force | Disengagement Force | ||||
| ≥50 cycles | 100 N Min | 40N Min | 30 N Max | 2 N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
